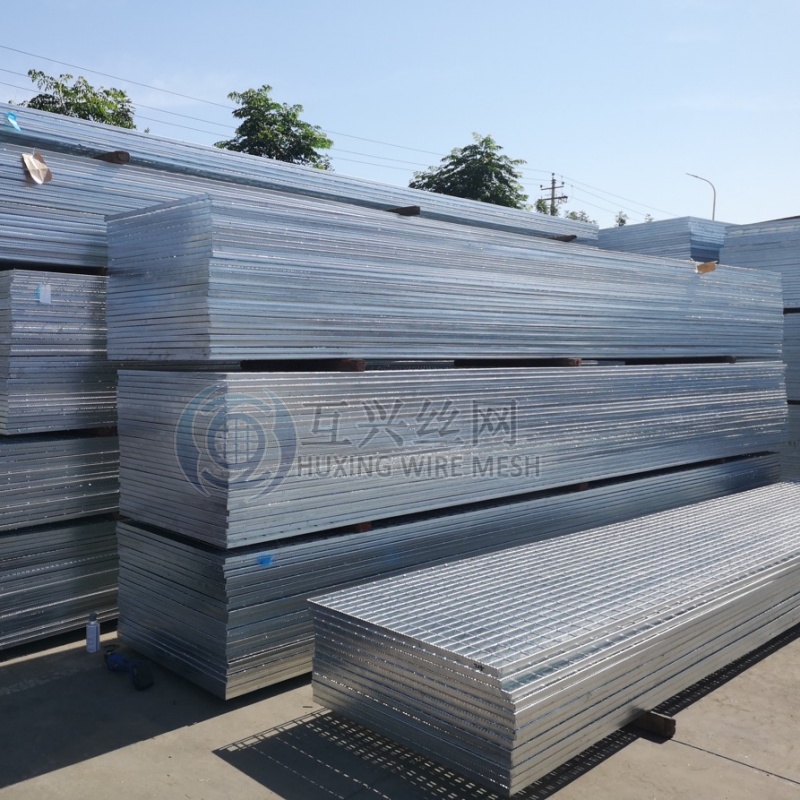

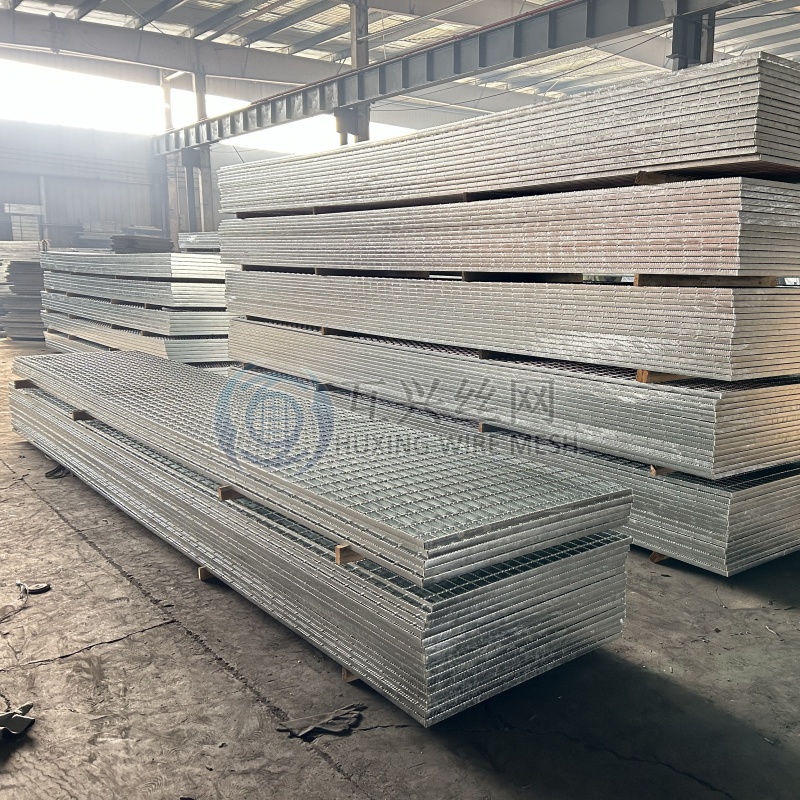

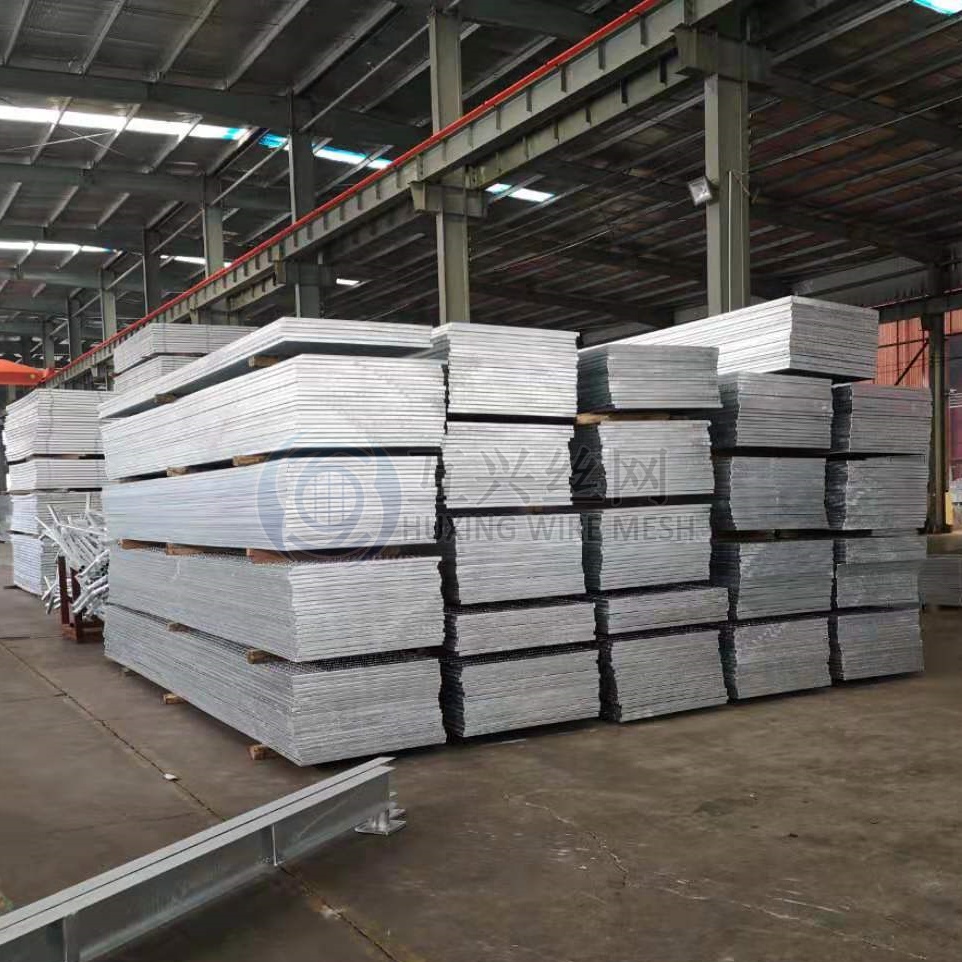

Hot Galvanized Serrated Tooth Bar Steel Grating 1m x 6m for Industry Platform Floor Walkways

Hot Galvanized Serrated Tooth Bar Steel Grating 1m x 6m for Industry Platform Floor Walkways

Name: Hot Galvanized Serrated Tooth Bar Steel Grating 1m x 6m for Industry Platform Floor Walkways
Brand: ANPING HUXING WIRE MESH PRODUCTS CO.,LTD
Availability: InStock
Rating: 5 (1 reviews)

Steel Bearing Bar: 25x3mm, 25x5mm, 30x3mm, 30x4mm, 30x5mm, 40x5mm, 50x5mm.
Pitch of Bearing Bar: 20mm, 25mm, 30mm, 40mm, 50mm.
Piece Size: 900x5800mm, 1000x6000mm;
Open end & Close end;
Steel Grating Corrosion Resistance by hot dipped galvanized after

INQUIRY PDF Format

Description

Functional Role and Target Audience for Industrial Grating
The Industry Floor Walkways Steel Grating is engineered to meet the rigorous demands of industrial environments requiring secure and durable walking surfaces. Targeted primarily at engineers, procurement managers, and facilities maintenance teams in manufacturing plants, power stations, and heavy industries, this product addresses the need for enhanced safety, structural stability, and compliance with occupational safety standards. The steel grating platform integrates seamlessly into factory flooring and elevated walkway systems, providing a reliable surface for pedestrian and light equipment traffic in demanding operational contexts. This solution is particularly suitable for environments exposed to mechanical stresses and requiring anti-slip properties, ensuring protection for personnel and operational continuity.

Technical Specifications and Construction Details of Steel Grating Panels
This industrial grating features a welded serrated construction formed by standard tooth-shaped flat steel bars welded to twisted steel bars, producing a structure optimized for load-bearing capacity and slip resistance. Hot dipped galvanization post-welding yields a zinc-coated surface that significantly enhances corrosion resistance and rust prevention, extending service life in chemically aggressive or outdoor conditions. Available in multiple panel sizes, including common dimensions up to 1000 x 6000 mm, the system allows customizable options for bearing bar widths ranging from 25x3 mm to 70x5 mm and cross bar diameters from 6 to 8 mm. The pitch of bearing bars and cross bars can be adjusted between 20 to 40 mm and 40 to 100 mm respectively to suit various load and ventilation requirements. Carbon steel and stainless steel (grades 304 and 316) material options are provided to meet specific environmental and structural needs.

Practical Implementation and Industry Applications of Steel Grating Platforms
Steel grating platforms manufactured by this steel grating company are widely utilized in sectors requiring high-performance flooring solutions including heavy manufacturing, chemical processing, power generation, and warehouse operations. They serve as essential components in elevated walkway platforms, maintenance pathways, and industrial floor covers, delivering durability under heavy foot traffic and equipment movement. The corrosion-resistant surface enables application in outdoor and harsh chemical environments, ensuring compliance with health and safety regulations. Integrated into complex system architectures, these steel grating panels facilitate efficient drainage, ventilation, and safe material handling. They support workflow efficiency by maintaining secure passageways and operational accessibility, directly contributing to asset protection and personnel safety.

Product Advantages

Structural Design and System Flexibility of Industrial Grating
The design of this industrial grating emphasizes modularity and robustness, with welded serrated bars providing enhanced grip and load distribution across the steel grating panels. The modular configuration allows easy installation and replacement within a steel grating platform system, accommodating varying site-specific design requirements without compromising structural integrity. The hot dipped galvanized finish, applied after precise welding and polishing, results in a uniform and durable zinc coating that safeguards against corrosion even in aggressive industrial atmospheres. This adaptable structural system is engineered for compatibility with different support frameworks, facilitating integration into existing infrastructure or new construction projects executed by steel grating suppliers focused on industrial efficiency and compliance.

Performance Reliability and Operational Benefits of Steel Grating Panels
From a usability perspective, these steel grating panels ensure consistent performance through hardened serrated surfaces that minimize slip risks in wet or oily conditions, promoting workplace safety. The product’s heavy-duty composition supports high load capacities while maintaining a lightweight profile relative to solid plates, optimizing handling and installation times. The corrosion-resistant zinc coating not only extends lifespan but also reduces maintenance frequency and cost, contributing to a favorable total cost of ownership in industrial installations. Additionally, the availability of stainless steel variants provides enhanced chemical resistance, meeting the needs of highly corrosive environments. These operational advantages result in reliable, long-term use, backed by manufacturing standards upheld by a reputable steel grating company.

► It is called Hot Dipped Galvanized Industry Floor Walkways Steel Grating. Can be used for industry floors, walkways steel grating.

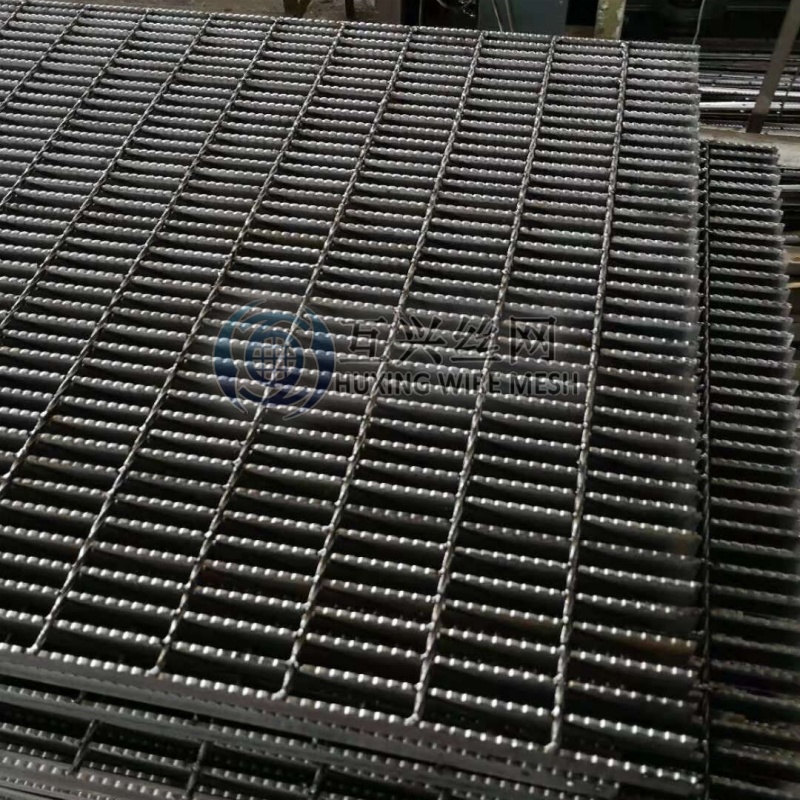

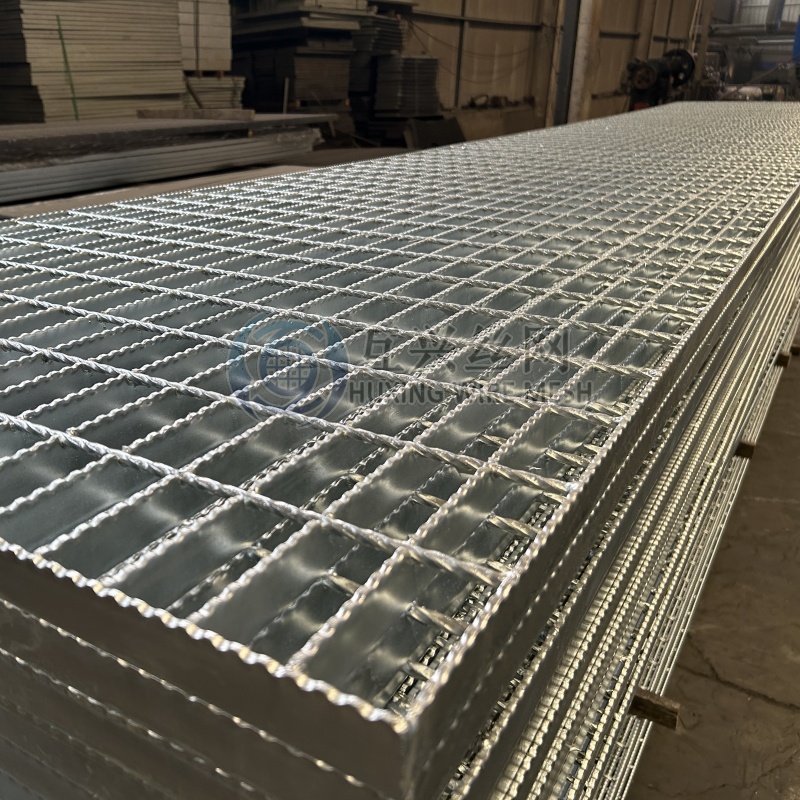

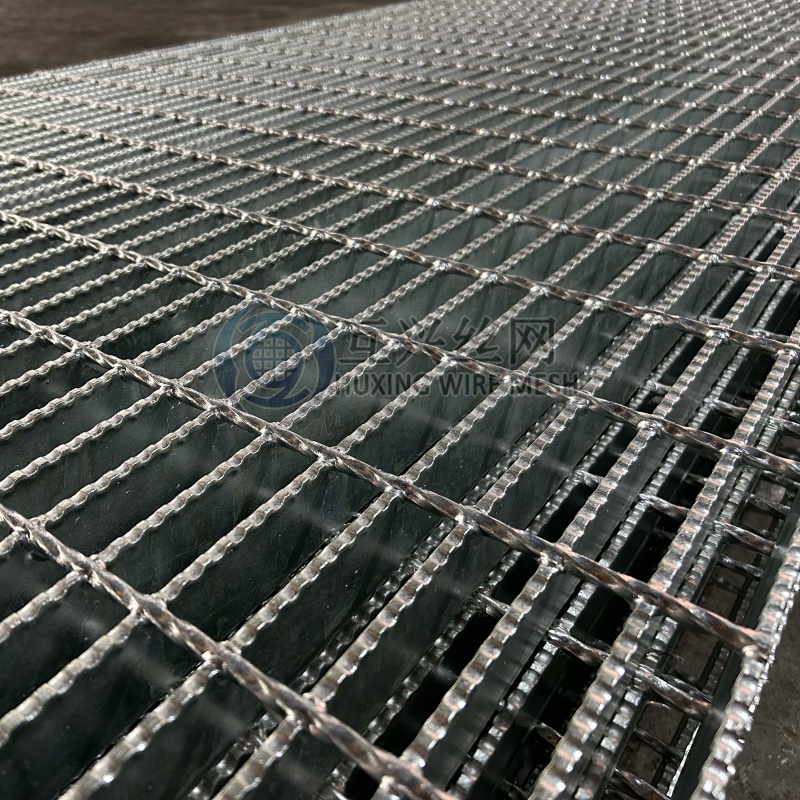

► Walkways Steel Grating Advantages: It is welded by standard tooth shaped flat steel bar and twisted steel bar. and make whole hot dipped galvanized after welding. Zinc coated surface treatment can protect steel grating from rusting & corrosion.

► HUXING WIRE MESH is located in Anping County in China. Our Company is direct factory for sale and export walkways steel grating. Every step of production quality is controlled carefully from steel materials to welding, polishing, hot dipped galvanized and packing & shipment. Steel grating quality is guarantee and price is competitive. and attractive when you purchase steel bar grating from us.

Materials: Carbon Steel Flat Bar, Twisted Steel Bars, Stainless Steel Bars 304,316;
Surface Finishing: Hot Dipped Galvanized is widely used.
Walkways Steel Grating Panel Sizes: the max length of each panel can be 5800mm, 6000mm. The width of each panel can be 900mm,914mm,1000mm, 1100mm,2000mm,2500mm. Of course, all steel grating sizes can be custom-made to suit your requirement.

More Sizes of steel bar can be checked as following:

Table: Specification of Walkways Steel Grating
Item	Specifications of Bearing Bar (mm)	Diameter of Cross Bar (mm)	Pitch of Bearing Bar (mm)	Pitch of Cross Bar (mm)
HXSG253	25x3	6	30,40	40,50,100
HXSG254	25x4	6,8	30,40	40,50,100
HXSG255	25x5	6,8	30,40	40,50,100
HXSG304	30x4	8	20,30,40	40,50,100
HXSG305	30x5	8	20,25,30,40	40,50,100
HXSG355	35x5	8	20,25,30,40	40,50,100
HXSG404	40x4	8	20,25,30,40	40,50,100
HXSG405	40x5	8	20,25,30,40	40,50,100
HXSG455	45x5	8	20,25,30,40	50,100
HXSG505	50x5	8	20,25,30,40	50,100
HXSG605	60x5	8	30,40	50,100
HXSG705	70x5	8	30,40	50,100

Use Scenarios

Heavy-Duty Floor Walkways in Manufacturing Environments
In manufacturing plants with high foot and light equipment traffic, the industrial grating is deployed as elevated walkways and factory flooring solutions. Here, the steel grating panels function as fundamental structural elements, supporting workers while providing safe, slip-resistant surfaces compliant with workplace safety regulations. The zinc-coated steel grating platform withstands mechanical abrasion and chemical exposure typical of industrial processes, ensuring durability and minimizing downtime related to flooring repairs. Integration with existing production layouts is straightforward due to customizable panel sizes and bearing bar configurations, enabling precise fit and alignment. This facilitates seamless inclusion into production workflow designs focused on improving personnel accessibility and operational safety.

Corrosion-Resistant Platforms for Chemical Processing Facilities
Chemical plants require flooring systems resistant to harsh environmental factors such as chemical spills, moisture, and temperature variations. The Industry Floor Walkways Steel Grating offers a corrosion-resistant steel grating platform solution that meets these stringent demands through hot dipped galvanization and choice of stainless steel materials. The grating’s open surface design promotes efficient drainage and ventilation, critical in chemical processing environments to prevent accumulation of liquids and reduce slip hazards. Installed on elevated platforms and maintenance routes, these steel grating panels reduce contamination risks and enable rapid cleaning cycles while maintaining structural strength. Their application supports regulatory compliance and enhances operational safety in chemically aggressive settings.

FAQ

Can the dimensions of your steel grating panels be customized to fit specific project requirements?
Yes, we offer customization for all our steel grating panels. You can specify length, width, and bearing bar dimensions to ensure our products fit your exact industrial floor or walkway needs, supporting diverse project specifications with precision.

What materials are used in manufacturing your industrial grating products?
Our industrial grating is made from premium carbon steel flat bars, twisted steel bars, and stainless steel options (304, 316). This combination ensures strength, durability, and corrosion resistance suited to harsh industrial environments.

Do you provide guidance on the installation of your steel grating platforms?
We provide technical support and recommendations for installing our steel grating platform to ensure safety and stability. Proper installation optimizes load distribution and longevity, which is critical for heavy-duty industrial flooring and walkway applications.

How does your steel grating resist corrosion and extend its service life?
All our steel grating undergoes hot dipped galvanization after welding and polishing, creating a zinc-coated surface that offers superior rust protection. This coating is essential for maintaining durability in corrosive or outdoor industrial settings.
